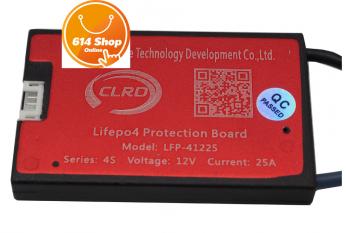

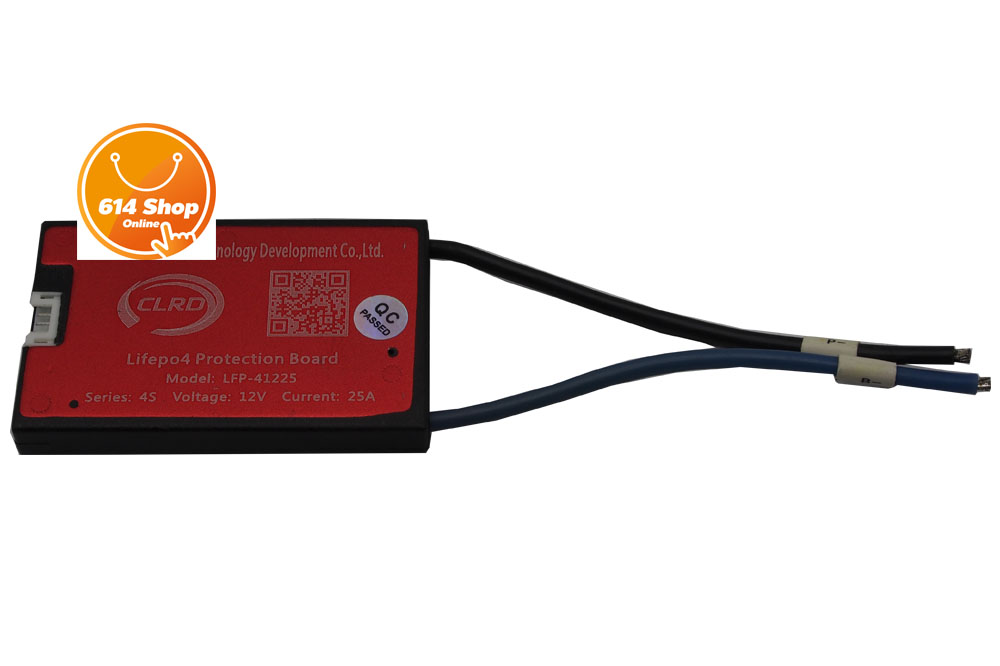

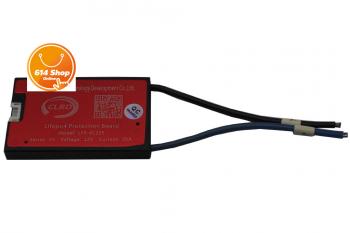

E-FIRE BMS LiFePO4 4S 25A
ชื่อสินค้า : E-FIRE BMS LiFePO4 4S 25A
รหัสสินค้า : BMS-001
ประเภท : *** กรุณาเลือก ทุกประเภทรถ ด้านบน ***
ยี่ห้อ : -
รุ่นรถ : -
รายละเอียด :
| 4S 12V | Detail | Specification |
| Discharge | Max. Continuous Discharging Current | 25A |
| Peak Discharge Current | 60A | |
| Over Current Protection | 60A | |
| Charge | Charging Voltage | 16.8V |
| Charging Current | 25A | |
| If separate port charging current is 8A | ||
|
Over Charge Protection |
Overcharge Detection Voltage | 4.25±0.025V |
| Overcharge Detction Delay Time | 0.5S | |
| Overcharge Release Voltage | 4.15±0.05V | |
| Cell Balancing | Cell Balancing Detection Voltage | 4.18V |
| Cell Balancing Release Voltage | 4.18V | |
| Cell Balancing Current | 35±5mA | |
|
Over Discharge Protection |
Over Discharge Detection Voltage | 2.8±0.05V |
| Over Discharge Detection Delay Time | 0.5S | |
| Over Discharge Release Voltage | 3.0±0.05V | |
|
Over Current Protection |
Over Current Detection Voltage | 150mV |
| Over Current Detection Delay Time | 9MS | |
| Over Current Protection Condition | Disconnect the load | |
| Short Protection | Detection Conditon | Exterior Short Curcuit |
| Detection Delay Time | 250uS | |
| Release Condition | Disconnect the load | |
| Temperature Protection | 65°C or 75°C | For Optional |
| Internal Resistance | Mosfet | ≤20mΩ |
| Size | mm | 75*47*9.5 |
